Here is a breakdown of how it works, key features, and best practices for using one.

How It Works in the Histology Workflow

1. Sectioning: A technician slices a tissue block on a microtome, creating an incredibly thin ribbon of paraffin wax containing the tissue (usually 3 to 5 microns thick).
2. Flotation: The wrinkled ribbon is carefully transferred and floated on the warm water surface of the histology water bath.
3. Expansion: The heat from the water softens the paraffin just enough to expand the section, instantly smoothing out any wrinkles, folds, or compression caused by the microtome blade.
4. Mounting: The technician dips a glass microscope slide into the water under the floating section and lifts it out, trapping the perfectly flat tissue section on the glass.

Key Features of a Histology Water Bath

• Temperature Control: Precision is critical. They typically operate between 35°C and 45°C (usually kept about 5°C to 10°C below the melting point of the specific paraffin wax being used).
• Black Interior Coating: The inner basin is almost always finished with a matte black anodized or Teflon coating. This creates high visual contrast, making it easy to see translucent, ultra-thin tissue sections floating on the water.
• LED Illumination: Many modern water baths feature built-in edge lighting or under-water LED lights to further improve section visibility and help identify imperfections or air bubbles.
• Integrated Drying Blocks / Orientation Plates: Some models include a heated ledge next to the bath where slides can be placed to drain and dry immediately after mounting.

Best Practices & Troubleshooting

1. Temperature Maintenance

• Too Hot: If the water is too hot, the paraffin will melt entirely, causing the tissue section to disintegrate or “explode” on the water surface.
• Too Cold: If the water is too cold, the wrinkles and folds in the section will not flatten out.

2. Preventing Cross-Contamination (Diagnostic Safety)

• The “Floaters” Risk: Small fragments of tissue can detach and remain in the water. If another patient’s tissue is mounted from the same water, those stray fragments (called “floaters”) can cause a misdiagnosis.
• Solution: The water surface must be skimmed clean using a lint-free tissue paper (like a Kimwipe) between every single tissue block. The bath should be emptied, cleaned, and refilled with fresh distilled water daily.

3. Avoiding Air Bubbles

• When placing the ribbon on the water, do it gently at an angle to prevent trapping air bubbles underneath the tissue. Air bubbles trapped under the section on the slide will cause the tissue to lift off or distort during subsequent staining steps.

Main components

• Light sources: a deuterium lamp for the UV region and a tungsten/halogen lamp for the visible region, sometimes combined with an automatic lamp selection system.
• Monochromator: dispersion element (diffraction grating or prism) plus entrance/exit slits that select a narrow wavelength band.
• Beam splitter or chopper: divides the monochromatic beam into two paths (sample and reference) either statically (partially reflecting mirror) or dynamically (rotating chopper/disc).
• Sample and reference compartments: matched cuvettes (usually quartz for UV) placed so one beam passes through the sample solution and the other through the reference (solvent or blank).
• Detectors: photodiodes, photomultiplier tubes (PMTs) or other photodetectors that convert light intensity to electrical signals.
• Electronics and software: amplify and digitize detector signals, compute transmittance/absorbance, perform wavelength scans and store spectra.

Optical path and working principle

• Broadband light from the lamp(s) is collimated and sent into the monochromator, which disperses the light and selects a narrow wavelength.
• The selected monochromatic beam is split into two beams of (ideally) equal intensity. One beam passes through the reference cuvette, the other through the sample cuvette.
• The detectors measure intensities I0 (reference) and I (sample) either with two detectors simultaneously or by recombining and alternating beams to a single detector (depending on instrument design).
• The instrument computes transmittance T = I / I0 and absorbance A = −log10(T) = log10(I0 / I). Scanning across wavelengths gives an absorption spectrum (A vs wavelength).

Typical optical configurations

• True double-beam, two-detector design: each beam has its own detector; reduces effects of source fluctuations and detector drift because ratioing is done continuously.
• Double-beam with single monochromator and switching/alternating path: a rotating chopper or mirror alternately sends sample and reference to the same detector; this avoids detector matching issues but requires stable switching.
• Twin monochromator/detector systems: separate monochromators and detectors for each path (less common due to complexity and matching challenges).

Advantages of double-beam design

• Real-time compensation for source intensity fluctuations and lamp ageing, improving baseline stability.
• Better baseline correction for solvent and stray-light effects since reference and sample are measured concurrently.
• Improved precision for low-absorbance (dilute) samples and long-term scanning experiments.

Limitations and practical notes

• More complex optics and alignment than single-beam instruments; may require periodic calibration and detector matching checks.
• Slight signal loss at the splitter and potentially more stray light paths; high-quality optical design mitigates these.
• For absolute single-wavelength intensity measurements a well-calibrated single-beam can be simpler, but for routine spectroscopy and scanning the double-beam is usually preferred.

Example measurement workflow

• Warm up lamps (recommended 15–30 min) for stable output.
• Fill reference cuvette with solvent and sample cuvette with analyte solution; place them in the matched holders.
• Zero or baseline with the reference beam so that A = 0 at the start (instrument usually stores I0 across wavelengths).
• Select wavelength or wavelength range and run a scan; the instrument outputs absorbance vs wavelength.
• For quantitative analysis, measure absorbance at λmax and apply Beer–Lambert law (A = ε·b·c) to determine concentration if molar absorptivity ε and pathlength b are known.

Quick troubleshooting tips

• If baseline drifts, check lamp warm-up time and lamp life.
• If noisy signal, check cuvette cleanliness, alignment, and slit width (wider slits increase intensity but reduce resolution).
• If absorbance is too high (A > ~1), dilute sample or use a shorter pathlength cuvette.

Here is a quick guide to understanding, choosing, and using a pH meter for agriculture.

Why pH Matters in Agriculture

Plants can only absorb nutrients when they are dissolved in soil water. The pH level of the soil controls this solubility.

• The Sweet Spot: Most crops thrive in a slightly acidic to neutral range of 6.0 to 7.0.
• Too Acidic (< 5.5): Calcium, magnesium, and phosphorus become less available, while toxicities from aluminum and manganese can occur.
• Too Alkaline (> 7.5): Iron, zinc, and manganese get locked up, leading to nutrient deficiencies (like yellowing leaves).

Types of Agricultural pH Meters

Depending on your setup, you’ll generally choose between three main types:

Key Features to Look For

If you are shopping for an agricultural pH meter, don’t just buy the cheapest pocket pen. Look for these essential specs:

• Automatic Temperature Compensation (ATC): pH readings change based on temperature. ATC automatically adjusts the reading so you get accurate results whether it’s a chilly morning or a hot afternoon.
• Replaceable Probes: The glass electrode on a pH meter will wear out eventually (usually 1–2 years). Buying a meter with a replaceable probe saves you from buying an entirely new unit.
• Waterproofing (IP67): Agriculture is messy. You want a meter that can handle being dropped in a muddy puddle or a nutrient tank.

How to Get Accurate Readings (The Slurry Method)

For the most accurate soil reading (especially if you don’t have a direct-soil probe), use the 1:1 or 1:2 soil slurry method:

1. Collect Samples: Gather soil from about 2 to 6 inches below the surface (clear away the top debris). Take samples from a few spots and mix them.
2. Mix with Distilled Water: Mix equal parts soil and distilled water (e.g., 50g soil to 50g water). Do not use tap water, as its pH will skew the results.
3. Shake and Wait: Stir or shake vigorously, then let it sit for 15 to 30 minutes so the soil settles and the nutrients dissolve.
4. Measure: Dip your calibrated pH meter into the liquid portion at the top and take your reading.

Maintenance: The Golden Rules

A pH meter is only as good as its calibration. Unlike a thermometer, it requires regular upkeep:

• Never Let the Probe Dry Out: Always store the electrode in pH storage solution (KCl). Never store it in distilled or RO water, as this ruins the glass membrane.
• Calibrate Often: Calibrate your meter using pH 4.0 and 7.0 buffer solutions at least once a week (or before every major testing session).
• Clean Gently: After testing soil, rinse the probe with distilled water. Never wipe the glass bulb with a paper towel—static electricity and scratches can ruin it.

Here is a breakdown of how it works, its core components, and critical safety guidelines.

How It Works

The setup combines thermal energy and magnetic force to manage a reaction:

1. Heating: An oil medium (typically silicone oil) fills a container placed on a heating mantle or hotplate. Oil is used instead of water because it has a much higher boiling point, allowing reactions to reach temperatures well above 100°C without evaporating.
2. Stirring: The hotplate contains an internal rotating magnet. A small, PTFE-coated magnetic stirring bar (or “flea”) is placed directly inside the reaction flask. When the hotplate’s motor spins, the internal magnet creates a rotating magnetic field, causing the stir bar in the flask to spin and mix the reactants.

Key Components

• The Hotplate/Stirrer Base: The underlying unit that controls both the heating element temperature and the magnetic rotation speed (RPM).
• The Bath Vessel: A heat-resistant container (often a stainless steel bowl or a heavy-duty borosilicate glass dish) that holds the oil.
• The Heating Medium (Oil): * Silicone Oil: Most common; stable up to roughly 200°C–250°C, low toxicity, and doesn’t smoke easily.
  • Mineral Oil: Cheaper, but has a lower flashpoint (around 160°C) and can pose a higher fire hazard if overheated.
• Magnetic Stir Bar: Placed inside the reaction flask to ensure even heat distribution and thorough mixing.
• External Temperature Probe: A digital sensor (like a PT100 probe) immersed directly into the oil bath to feedback precise temperature data to the hotplate, preventing thermal runaway.

Advantages over Direct Heating

Gentle Thermal Transfer: Oil transfers heat more gradually and predictably than a direct flame or bare hotplate surface.

Uniform Heat Distribution: Eliminates “hot spots” on the reaction flask that can cause localized overheating, product degradation, or flash boiling.

Precise Temperature Control: When paired with a digital contact thermometer, it maintains a highly stable temperature environment.

Whether you need a single specific capacity for precise analytical tasks or a comprehensive multi-pack for a diverse range of applications, excellent high-clarity options with printed metric graduations and drip-free spouts are widely available.

Practical selection

For general lab mixing and heating, a low-form beaker is usually more stable. For easier handling and pouring at similar volumes, tall-form beakers are often preferred. If you need exact measurements, a volumetric flask or pipette is better than a beaker.

Typical use cases

• Preparing reagents.
• Heating solutions.
• Stirring and combining liquids.
• Rough volume estimation in labs, classrooms, and industrial settings.

1. Vessels for Culturing, Mixing, and Storage

• Erlenmeyer Flasks (Conical Flasks): Featuring a flat bottom, a tapered conical body, and a narrow cylindrical neck. The sloping sides allow liquids to be swirled vigorously without risk of spillage, making them ideal for preparing culture media, mixing reagents, and cultivating aerobic cell cultures that require optimized gas exchange.
• Beakers: Cylindrical vessels with a flat bottom and a small pouring spout. They are primarily used for general liquid handling, mixing, heating, and preparing solutions (such as pH buffers) before transferring them to high-precision volumetric containers.

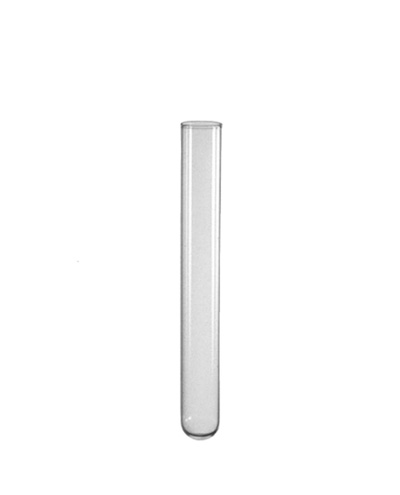

• Culture Tubes & Test Tubes: Elongated glass tubes with rounded or flat bottoms. Typically made of heavy-wall borosilicate glass to withstand repeated autoclaving (steam sterilization), they are used for culturing bacteria, fungi, or tissue samples, as well as running small-scale biochemical assays.
• Glass Petri Dishes: Shallow, reusable cylindrical dishes equipped with a loose-fitting glass lid. While plastic is widely used, glass petri dishes are essential for specialized applications requiring high chemical resistance or repeated thermal sterilization for culturing microorganisms on agar media.

2. Volumetric Glassware for Precision Liquid Handling

• Volumetric Flasks: Pear-shaped flasks with a flat bottom and a long, narrow neck featuring a single precise graduation mark. They are calibrated to hold an exact volume at a specific temperature (usually 20°C) and are critical for preparing precise molar solutions, standard buffers, and analytical reagents.
• Graduated Cylinders: Tall, narrow vessels marked with a graduated scale along the side. They provide moderate to high accuracy for measuring and pouring liquid volumes during general solution preparation.
• Burettes: Long, graduated glass tubes with a stopcock at the bottom. Used in biochemical titrations to deliver measured volumes of liquid with high precision, such as determining the buffering capacity of a biological solution.
• Glass Pipettes (Volumetric and Serological): Used to transfer specific volumes of liquid. Volumetric pipettes are calibrated to dispense a single, highly accurate volume, whereas serological pipettes feature graduated markings for variable volume transfers, often used in sterile cell culture environments.

3. Specialized Biological & Biochemical Glassware

• Coplin Staining Jars: Heavy, square-profile glass jars featuring internal grooves designed to hold microscope slides vertically. These are a standard tool in histology, hematology, and microbiology for staining tissue sections or bacterial smears (e.g., Gram staining or H&E staining).
• Kjeldahl Flasks: Round-bottom flasks characterized by a long, wide neck designed to withstand intense thermal digestion. They are used specifically in biochemistry and food science for the Kjeldahl method to determine organic nitrogen and protein content in biological samples.
• Separatory Funnels: Pear-shaped vessels equipped with a top stopper and a bottom stopcock. They facilitate liquid-liquid extractions, enabling researchers to separate immiscible phases, such as isolating lipid fractions or bioactive compounds from aqueous biological mixtures.
• Condensers (e.g., Allihn or Liebig Condensers): Glass jackets designed to circulate cooling water around an inner tube, converting vapor back into liquid. They are integrated into distillation or reflux setups for extracting natural products, essential oils, or solvents from biological matrices.

Primary Material Properties

The vast majority of high-quality biology glassware is manufactured from Type 1, Class A Borosilicate Glass (commonly referred to as Borosilicate 3.3). This material offers distinct advantages necessary for laboratory environments:

• Thermal Shock Resistance: A very low coefficient of thermal expansion allows the glass to withstand rapid temperature differentials without cracking, making it safe to transition directly from an autoclave or hot plate to a refrigerator or ice bath.
• Chemical Hydrolytic Resistance: Highly resistant to water, acids, halogens, organic compounds, and alkaline solutions, minimizing the risk of ions leaching from the glass into sensitive biological samples or enzyme assays.
• Optical Clarity: High light transmission allows for unobstructed visual inspection of microbial growth, precipitation, colorimetric shifts, or phase separations.

1. Water & Wastewater Quality Analysis

These instruments measure chemical, physical, and biological pollutants in water systems.

• pH Meters & Conductivity Meters: For measuring acidity/alkalinity and total dissolved solids (TDS).
• DO (Dissolved Oxygen) Meters: Essential for assessing the health of aquatic ecosystems and wastewater treatment efficiency.
• Turbidity Meters (Nephelometers): To measure water clarity and suspended particulate matter.
• BOD (Biochemical Oxygen Demand) Incubators: Maintained strictly at 20°C to evaluate the organic strength of wastewater over a 5-day cycle.
• COD (Chemical Oxygen Demand) Digesters / Thermoreactors: Used to chemically oxidize organic matter to quickly determine pollution levels.
• Jar Test Apparatus: Simulates coagulation and flocculation processes used in water treatment plants.

2. Soil & Solid Waste Testing

These tools assist in verifying soil chemistry, nutrient availability, and heavy metal contamination.

• Micro-Kjeldahl Digestion Units: Used to determine total organic nitrogen in soil and water samples.
• Soxhlet Extractor Systems: To extract lipids, pesticides, and hydrocarbons from solid matrices or soil using solvents.
• Moisture Balances: For rapidly determining the moisture content of soil samples.

4. Advanced Analytical Instrumentation

For identifying trace-level contaminants like heavy metals, pesticides, and synthetic chemicals.

• Gas Chromatography-Mass Spectrometry (GC-MS): The standard for identifying unknown organic pollutants, volatile gases, and pesticides in soil and air.

• High-Performance Liquid Chromatography (HPLC): Used to isolate and quantify non-volatile compounds, such as microplastics or pharmaceutical residues in water.
• Atomic Absorption Spectrophotometer (AAS) / ICP-MS: Crucial for detecting heavy metals (e.g., Lead, Mercury, Arsenic, Cadmium) at parts-per-billion (ppb) concentrations.
• UV-Visible Spectrophotometer: A highly versatile tool for routine testing of nutrients (nitrates, phosphates) and certain chemical compounds via light absorbance.

5. Core Lab Equipment & Sample Preparation

The foundational equipment needed to handle, prepare, and store samples safely.

Here is a comprehensive breakdown of essential cell culture equipment categorized by its role in the workflow.

1. Sterility and Containment

Maintaining an aseptic environment is the most critical factor in cell culture to prevent bacterial, fungal, or mycoplasma contamination.

• Biosafety Cabinet (BSC) / Laminar Flow Hood: The central workspace. A Class II BSC is standard for most cell culture labs, utilizing HEPA filters to provide a sterile environment for the sample while simultaneously protecting the operator and environment from biohazardous aerosols.
• Autoclave: Uses high-pressure steam to sterilize heat-resistant instruments, waste, and reusable glassware.
• Aspirator Pump: A vacuum or peristaltic pump kept inside or next to the hood to quickly draw off spent media and washing buffers (like PBS) from culture vessels.

2. Environmental Control

Cells require tightly regulated physiological conditions mimicking their native environment.

• CO₂ Incubator: Maintains a constant temperature (typically 37°C for mammalian cells), high humidity, and a controlled level of carbon dioxide (usually 5% or 10%). The CO₂interacts with bicarbonate-buffered culture media to maintain a stable physiological pH (~7.4).
• Water Bath or Bead Bath: Used to warm up culture media, trypsin, and reagents to 37°C before introducing them to live cells, preventing thermal shock.

3. Cell Processing and Analysis

Equipment required for the physical manipulation, separation, and evaluation of cell health.

• Inverted Microscope: Unlike standard microscopes, inverted microscopes have the light source above and the objectives below the stage. This allows researchers to look through the bottom of thick culture flasks and plates to observe cell morphology and confluency.
• Centrifuge: Essential for spinning down cells to separate them from supernatant (spent media or trypsin) during passaging, harvesting, or washing steps. A swinging-bucket rotor with temperature control is highly preferred.
• Automated Cell Counter / Hemocytometer: Used to calculate cell density and viability (often using Trypan Blue exclusion dye) to ensure exact seeding densities for experiments.

4. Storage and Preservation

Because biotech relies heavily on growing specific cells or microbes without contamination, autoclaving is a foundational process for maintaining sterile environments.

How It Works: The Science of Steam

Simply boiling items at 100°C isn’t enough to kill highly resilient bacterial endospores. Autoclaves solve this by sealing the chamber and letting pressure build up, which raises the boiling point of water and allows the steam to reach higher, lethal temperatures.

The standard operating parameters for a laboratory autoclave are:

• Temperature: 121°C (250°F)
• Pressure: 15 psi (pounds per square inch) above atmospheric pressure
• Time: Typically 15 to 20 minutes (depending on the load volume)

At this temperature and pressure, the intense heat penetrates materials and rapidly denatures and coagulates the structural proteins and enzymes of microorganisms, effectively destroying them.

Key Applications in Biotechnology

Autoclaves are incredibly versatile and are used to sterilize both the inputs of an experiment and the waste generated afterward.

1. Media Preparation

Before you can grow bacteria, yeast, mammalian cells, or mushroom mycelium, you need to prepare a nutrient medium (agar or liquid broth). Autoclaving ensures that the medium is a completely blank slate, free of any wild contaminants that could outcompete your target organism.

2. Sterilization of Labware

Reusable tools and containers must be completely sterile before contacting biological samples. Common items include:

• Glassware (beakers, flasks, bottles)
• Plastic pipette tips and microcentrifuge tubes (made of heat-resistant polypropylene)
• Surgical instruments and tweezers
• Bioreactor components

3. Biohazardous Waste Decontamination

Biotech labs often generate waste containing genetically modified organisms (GMOs), pathogens, or biological hazards. Before this waste can be safely disposed of in municipal trash, it must be autoclaved to render it completely biologically inert.

What Can and Cannot Be Autoclaved?

To avoid dangerous accidents or ruined equipment, understanding material compatibility is critical.

Types of Autoclaves in Biotech

Depending on the scale and specific needs of the lab, autoclaves come in various configurations:

• Benchtop/Portable Autoclaves: Compact, pressure-cooker style or front-loading units. Ideal for small research labs, tissue culture work, or specific small-scale cultivation needs.
• Vertical/Top-Loading Autoclaves: Popular in microbiology labs; great for sterilizing large flasks of liquid media.
• Large Pass-Through Autoclaves: Built into the walls of high-security containment labs (like BSL-3 labs) or industrial facilities. Items go in clean on one side and exit into a sterile zone on the other.

FUNCTION

This dry cabinet is designed to protect the humidity sensitive electronics from moisture damage. AI-133 is automatic from 0%RH to 50%RH (Adjustable). The interior environment is controlled by precise LED digital controller of Temp and Humidity, Soft Key Buttons, Digital humidity Controller.

INTRODUCTION

Modular Design:

This is a professionally designed dry cabinet. The main modules are display controller, power box, dehumidifier,shelf, casters,all modules can be replaced easily.

Environmental Design:

We’re exclusive manufacturer who passed ROHS,to avoid pollution on electronics, the performance of the dry cabinet can be upgraded by just changing the modules,there will be no waste materials created to pollute the environment. The old modules can be collected and sent back to the maker. Dry cabinets can be used as long as the cabinet structure is in good condition. It means that the product life could last for 15-20 years.

Flexible Design:

The units are so flexible that users can select and install modules at any time.

Easy Operation Design:It is a plug and play dry cabinet. Considerable training costs are saved. The default setting is 5%RH(right curve pic.)

TECHNICAL SPECIFICATION

1. Humidity Range: 0~50%RH(Adjustable )

• Internal Dimension (MM): 1198(W)  x 682(D) x 1723(H)mm
• Outer Dimension (MM): 1200 (W) x 710(D) x 1910(H)mm
• Volume: 1436 L
• Weight: 189 KG
• Load: Max. 100 KG per shelf

Recovery time: it recovers to <5% within 30 minutes after door open 30 seconds and closed.

2.Shelves: 05 pcs with adjustable height provision.

3.Color: Grey ESD safe

4.Voltage: 230V 60HZ single phase

5.Display Precision: ±2%RH: , ±1℃

6.Display: LED Display of Humidity & Temperature

7.Structure:

• Controls: US imported “Honeywell” humidity sensor and imported molecular sieve,it has memory function,no need to re-set after power failure.
• Construction: High level 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance,surface treatment with anti-static painting.

8.Door: 6 doors, with transparent toughened glass window, airtight magnetic rubber gasket.

9.Door Lock and Hinges: Doors will be fitted with rugged Press-fit handles with locking facility and heavy duty reliable hinges.

10.Mounting: 4 ESD Castor wheels with brakes with height adjustment provision

11.Display Resolution: 1℃

12.The best performance of the dry cabinet is under ambient temperature below 30 ℃

13.Certification: CE, ROHS & ISO, IEC /EN

14.Power Supply: 220 Volts/50hz

Drawing For Model No: AI-133
