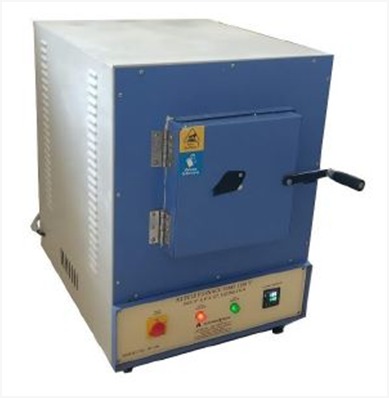

A muffle furnace, also known as a muffle oven or retort furnace, is a high-temperature heating device used in laboratories and industries for processes requiring extreme heat, typically ranging from 900°C to 1800°C. Unlike standard ovens, it isolates the material being heated from combustion by products, fuel, or external contaminants, ensuring a controlled environment. This is achieved through a refractory chamber (the “muffle”) made of ceramic or other heat-resistant materials, which surrounds the sample and separates it from the heating elements.
Key Features
Temperature Range: Models operate between 900°C and 1800°C, with continuous working temperatures slightly lower (e.g., 1000°C for a 1100°C max furnace).
Heating Elements:
Kanthal A-1 wire for ~1100°C furnaces.
Silicon carbide (SiC) rods for ~1450°C.
Molybdenum disilicide (MoSi2) for 1600–1800°C.
Insulation: Ceramic fiber or zirconium boards ensure low energy consumption and minimal heat loss, with triple-walled designs for safety and low external temperatures.
Control Systems: Microprocessor-based PID controllers or programmable controllers with ramp, soak, and sinter steps for precise temperature management. Some include PLC with HMI for data logging.
Chamber Sizes: Vary from small (0.07 cu.ft.) to large (3.38 cu.ft.), with custom options available.
Applications:
Laboratory: Ashing (determining non-combustible content), calcination, annealing, and heat treatment of samples.
Industrial: Fusing glass, creating enamel coatings, ceramics, soldering, brazing, and small-scale production in steel, paint, or biotech industries.
Specialized: Low-temperature firing of porcelain enamels or roll-to-roll manufacturing in tube-shaped muffle furnaces.
Differences from Other Ovens:
Vs. Drying Ovens: Muffle furnaces reach much higher temperatures (up to 1800°C vs. ~300°C for drying ovens) and are designed for high-temperature processing (e.g., sintering) rather than moisture removal. They also provide a controlled atmosphere, often inert, while drying ovens use forced air convection.
Vs. Hot Air Ovens: Hot air ovens operate at lower temperatures (50–250°C) for sterilization or drying, while muffle furnaces burn samples at high temperatures to assess impurities.
Vs. Standard Furnaces: Muffle furnaces are smaller, benchtop units for lab use, with isolated chambers to prevent contamination, unlike larger heat-treating furnaces.
Safety and Usage Notes:
Protective Gear: High temperatures require heat-resistant gloves and eyewear.
Material Awareness: Know the melting point of samples to avoid damage or fire. Avoid plastics, corrosives, or explosives.
Thermocouple Care: Fragile thermocouples must not be disturbed.
Maintenance: Power off and seal the door when not in use to protect refractories from moisture.
